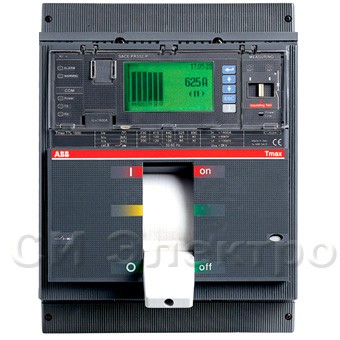

T7S 1250 PR231/P LS/I In=1250A 3p F F
Informacion General
Extended Product Type:
T7S 1250 PR231/P LS/I In=1250A 3p F F
Catalog Description:
T7S 1250 PR231/P LS/I In=1250A 3p F F
Long Description:
C.BREAKER TMAX T7S 1250 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC PR231/P-LS/I R 1250
Categorias
Productos»
- Productos y sistemas de baja tensión
»
- Interruptores automáticos
»
- Interruptores automáticos en caja moldeada
»
- Tmax T
Ordering
Dimensions
Container Information
Package Level 1 Gross Weight:
Environmental
RoHS Status:
Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2007 Q2
Additional Information
Product Name:
Automatic Circuit Breaker
Rated Operational Voltage:
Rated Service Short-Circuit Breaking Capacity (Ics):
(220V AC) 85 kA
(230V AC) 85 kA
(380V AC) 50 kA
(400V AC) 50 kA
(415V AC) 50 kA
(440V AC) 50 kA
(500V AC) 40 kA
(690V AC) 30 kA
Rated Short-time Withstand Current (Icw):
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
(220V AC) 8.5 kA
(230V AC) 8.5 kA
(380V AC) 50 kA
(400V AC) 50 kA
(415V AC) 50 kA
(440V AC) 50 kA
(500V AC) 40 kA
(690V AC) 30 kA
Rated Uninterrupted Current (Iu):
Suitable for Product Class:
Moulded Case Circuit Breakers
Terminal Connection Type:
Certificates and Declarations (Document Number)
Declaration of Conformity – CE:
Classifications
ETIM 4.0:
EC000228 – Power circuit-breaker for trafo/generator/installation prot.
ETIM 5.0:
EC000228 – Power circuit-breaker for trafo/generator/installation prot.
Object Classification Code:
